Kennametal

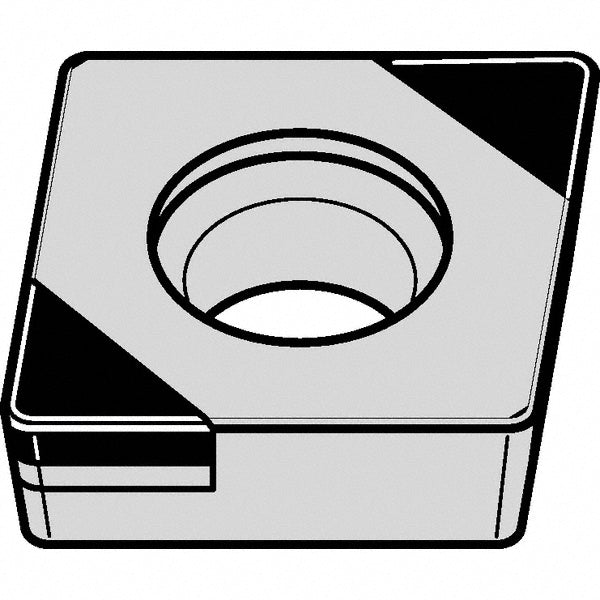

C - Diamond (Rhombic) 80-Deg 1/2" IC PCBN Insert, Grade KB1630 - Kennametal 3657711
MFR# 3657711ISO/ANSI# CCGW120408Series Screw-On
$166.16List $199.29
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeKB1630
MaterialPCBN
Description
The Kennametal 3657711 is a pcbn indexable insert, grade KB1630. Suited for hard material.
Specifications
Ansi insert codeCCGW432
Ansi size code432
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeC
Coating processUncoated
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsCast Iron (K) - High Wear-Resistance; Special, Super Alloys (S) - High Wear-Resistance
Hole diameter0.2165
Included angle80
Industry standard numberCCGW432S0415MT
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5080
Insert materialPCBN
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCCGW
Insert thickness in3/16
Iso insert codeCCGW120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number3657711
Manufacturer gradeKB1630
Material gradeH25; H35
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakePositive
Rake angle0
Relief angle7
Side clearancePositive
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
