Kennametal

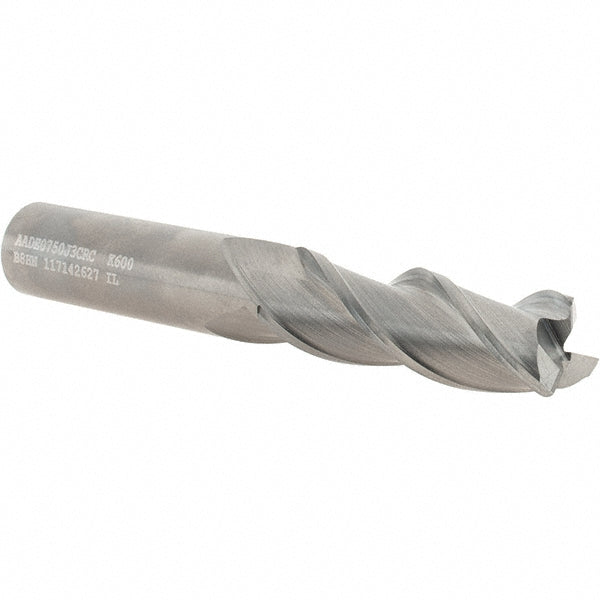

3/4" 3-Flute Solid Carbide Corner Radius End Mill - Kennametal 3658851

MFR# 3658851Cat# 4K1319077CSeries AADE

$425.74List $546.03 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Kennametal 3658851 is a 3/4 3-flute Solid Carbide (Submicron) corner radius end mill. Suited for non-ferrous metal. 2-1/4 length of cut, 5 overall length. Series AADE.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Corner radius0.0600

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withHC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Inch Bores; HC 20M - HC 32M Hydraulic Sleeves Metric with Inch Bores; HC-HSK Form A; HC-HSK Form A

Helix styleHigh

Length of cut in2-1/4

Length typeStandard

Manufacturers catalog number4K1319077C

Material applicationNon-Ferrous Metal

Material gradeSubmicron

Material removal typeRoughing

Mill diameter in3/4

Mill diameter tolerance+0.000000/-0.002000 in

Number of flutes3

Overall length in5

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Shank diameter in3/4

Shank diameter tolerance+0.00000/-0.00051 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
