Kennametal

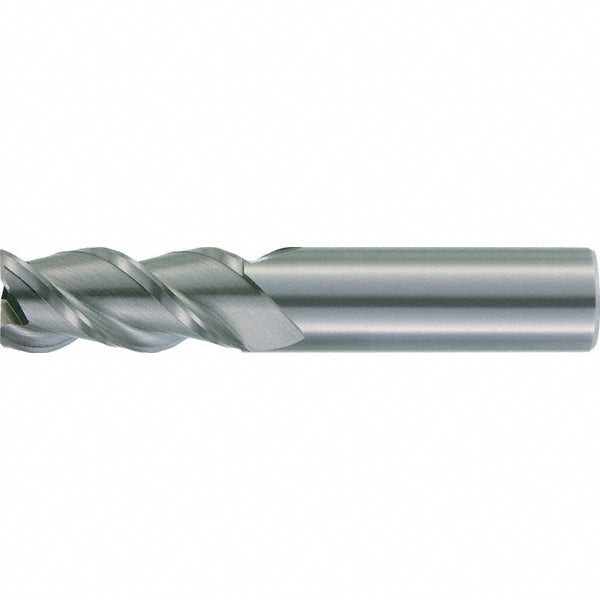

1" 3-Flute Solid Carbide Corner Radius End Mill - Kennametal 3658865

MFR# 3658865Series AADE

$430.36List $551.96 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Kennametal 3658865 is a 1 3-flute Solid Carbide (Submicron) corner radius end mill. Suited for non-ferrous metal. 1-1/2 length of cut, 4 overall length. Series AADE.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withHC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Inch Bores; HC 20M - HC 32M Hydraulic Sleeves Metric with Inch Bores; HC-HSK Form A; HC-HSK Form A; HC-CV Form AD; HC-CV Form AD

Helix styleHigh

Length of cut in1-1/2

Length typeShort

Material applicationNon-Ferrous Metal

Material gradeSubmicron

Material removal typeRoughing

Mill diameter in1

Number of flutes3

Overall length in4

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Shank diameter in1

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
