Kennametal

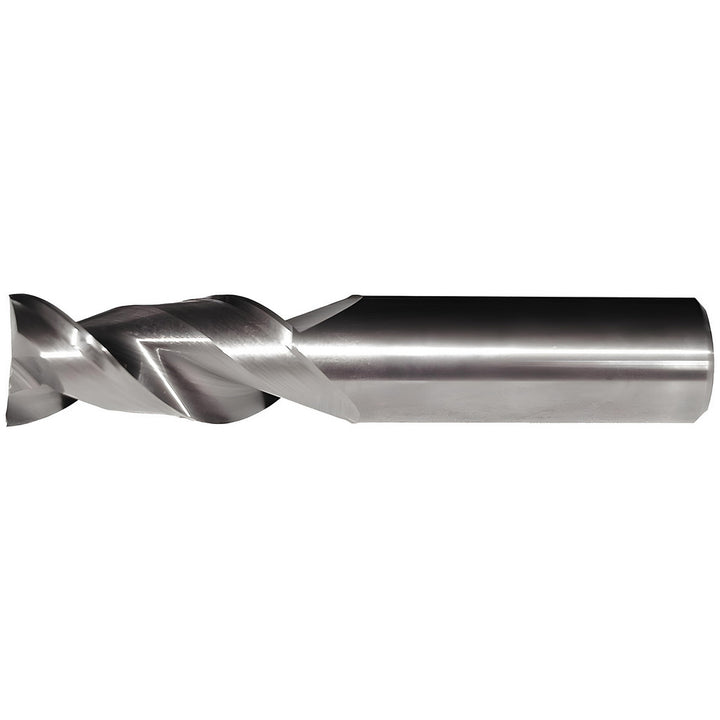

3/8" 2-Flute Solid Carbide Corner Radius End Mill - Kennametal 3658902

MFR# 3658902Cat# 4K1210074BSeries AADF

$125.89List $161.47 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes2

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Kennametal 3658902 is a 3/8 2-flute Solid Carbide (Submicron) corner radius end mill. Suited for non-ferrous metal. 1-1/2 length of cut, 4 overall length. Series AADF.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withHC-HSK Form A

Helix styleHigh

Length of cut in1-1/2

Length typeLong

Manufacturers catalog number4K1210074B

Material applicationNon-Ferrous Metal

Material gradeSubmicron

Material removal typeRoughing

Mill diameter in3/8

Mill diameter tolerance+0.000000/-0.002000 in

Number of flutes2

Overall length in4

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Shank diameter in3/8

Shank diameter tolerance+0.00000/-0.00035 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
