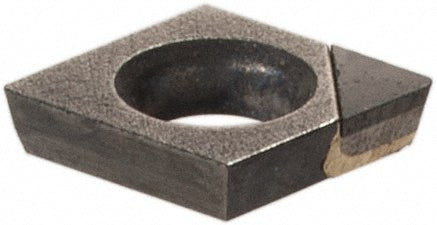

Diamond 5/32" IC PCD Insert, Grade KD1400 - Kennametal 3659963
MFR# 3659963Series Screw-On
$151.88List $182.17
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
ShapeDiamond
GradeKD1400
MaterialPCD
Description
The Kennametal 3659963 is a pcd indexable insert, grade KD1400. Suited for non-ferrous metal.
Specifications
ChipbreakerFlat Top
Coating processUncoated
Corner radius in1/128
Hole diameter0.0839
Included angle80
Inscribed circle in5/32
Insert handNeutral
Insert holding methodScrew
Insert materialPCD
Insert shapeDiamond
Insert size code120605
Insert styleCDHB
Length0.1587
Manufacturers catalog number3659963
Manufacturer gradeKD1400
Material gradeN05; N15
Maximum depth of cut0.0492
Number of cutting edges1
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle0
Relief angle15
Single or multi tippedSingle Tipped
StandardsANSI; ISO
Width0.1563
