Kennametal

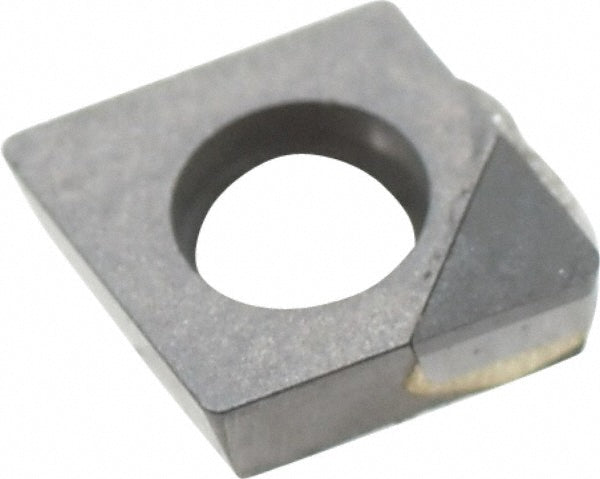

C - Diamond (Rhombic) 80-Deg 1/4" IC PCD Insert, Grade KD1400 - Kennametal 3659969
MFR# 3659969ISO/ANSI# CPGW060204Series Screw-On
$139.99List $167.90
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeKD1400
MaterialPCD
Description
The Kennametal 3659969 is a pcd indexable insert, grade KD1400. Suited for non-ferrous metal.
Specifications
Ansi insert codeCPGW2151
Ansi size code2151
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeP
Coating processUncoated
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance; Special, Super Alloys (S) - High Wear-Resistance
Hole diameter0.1102
Included angle80
Industry standard numberCPGW2151FST
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialPCD
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code2151
Insert styleCPGW
Insert thickness in3/32
Iso insert codeCPGW060204
Iso size code060204
Length range0.0000 - 0.3000
Manufacturers catalog number3659969
Manufacturer gradeKD1400
Material gradeN05; N15
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges1
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle0
Relief angle11
Side clearancePositive
Single or multi tippedSingle Tipped
StandardsANSI; ISO
Tolerance codeG
Width in1/4
Wiper edgeNo
