Kennametal

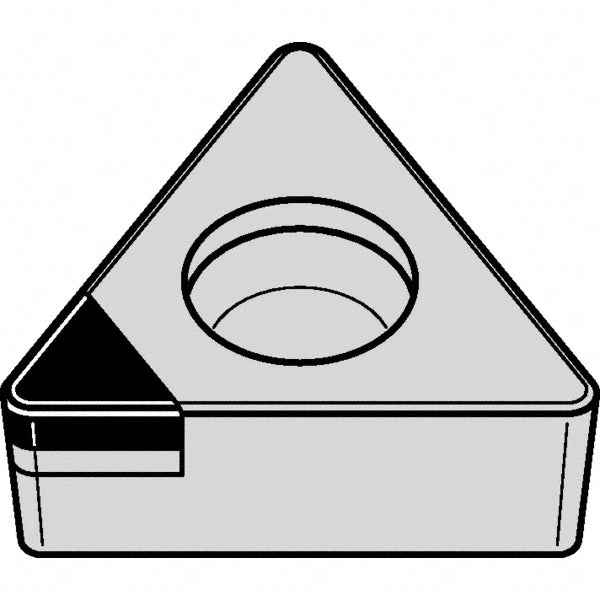

T - Triangle 3/8" IC PCD Insert, Grade KD1400 - Kennametal 3659986
MFR# 3659986ISO/ANSI# TCGW16T304Series Screw-On
$130.97List $157.04
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeKD1400
MaterialPCD
Description
The Kennametal 3659986 is a pcd indexable insert, grade KD1400. Suited for non-ferrous metal.
Specifications
Ansi insert codeTCGW3251
Ansi size code3251
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeC
Coating processUncoated
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance; Special, Super Alloys (S) - High Wear-Resistance
Hole diameter0.1732
Included angle60
Industry standard numberTCGW3251FST
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6496
Insert materialPCD
Insert shapeT - Triangle
Insert size code3251
Insert styleTCGW
Insert thickness in5/32
Iso insert codeTCGW16T304
Iso size code16T304
Length range0.6000 - 0.6500
Manufacturers catalog number3659986
Manufacturer gradeKD1400
Material gradeN05; N15
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges1
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle0
Relief angle7
Side clearancePositive
Single or multi tippedSingle Tipped
StandardsANSI; ISO
Tolerance codeG
Width0.6496
Wiper edgeNo
