Kennametal

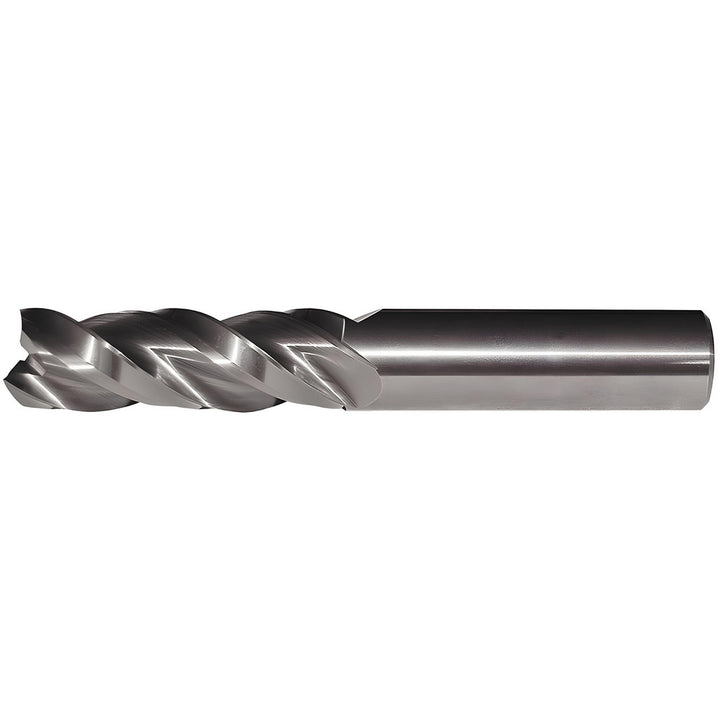

3/8" 3-Flute Solid Carbide Corner Radius End Mill - Kennametal 3660425
MFR# 3660425Cat# 3336117Series ABDE
$102.87List $129.64
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/8
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The Kennametal 3660425 is a 3/8 3-flute Solid Carbide (Submicron) corner radius end mill. Suited for non-ferrous metal. 3/4 length of cut, 2-1/2 overall length. Series ABDE.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withHC-HSK Form A
Helix styleHigh
Length of cut in3/4
Length typeShort
Manufacturers catalog number3336117
Material applicationNon-Ferrous Metal
Material gradeSubmicron
Material removal typeRoughing
Mill diameter in3/8
Mill diameter tolerance+0.000000/-0.002000 in
Number of flutes3
Overall length in2-1/2
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Shank diameter in3/8
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
