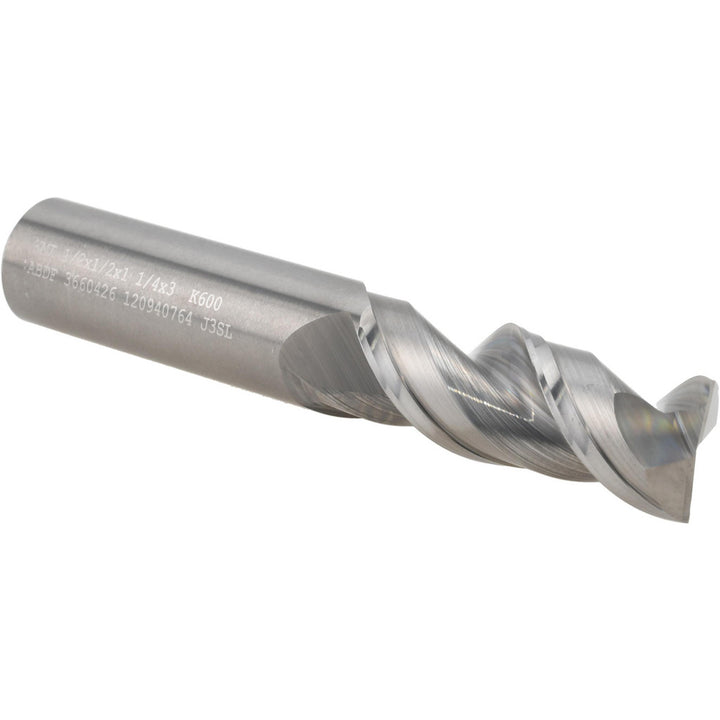

0.5000" 2-Flute Corner Radius End Mill - Kennametal 3660426

Kennametal

0.5000" 2-Flute Corner Radius End Mill - Kennametal 3660426

MFR# 3660426Series ABDF

$110.48List $141.69 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingBright/Uncoated

Description

The Kennametal 3660426 is a 0.5000 2-flute (Micrograin) corner radius end mill. 1-1/4 length of cut. Series ABDF.

Specifications

ChipbreakerNo
Coating finishBright/Uncoated
Corner radius0.0000
Cutting directionRight Hand
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Helix angle45
Length of cut in1-1/4
Length typeRegular
Material gradeMicrograin
Mill diameter0.5000
Mill diameter frac in1/2
Mill diameter tolerance+0.000000 to -0.002000 in
Number of flutes2
Shank diameter in1/2
Shank diameter tolerance+0.00000/-0.00043 in
Shank typeStraight-Cylindrical
Single or double endSingle
