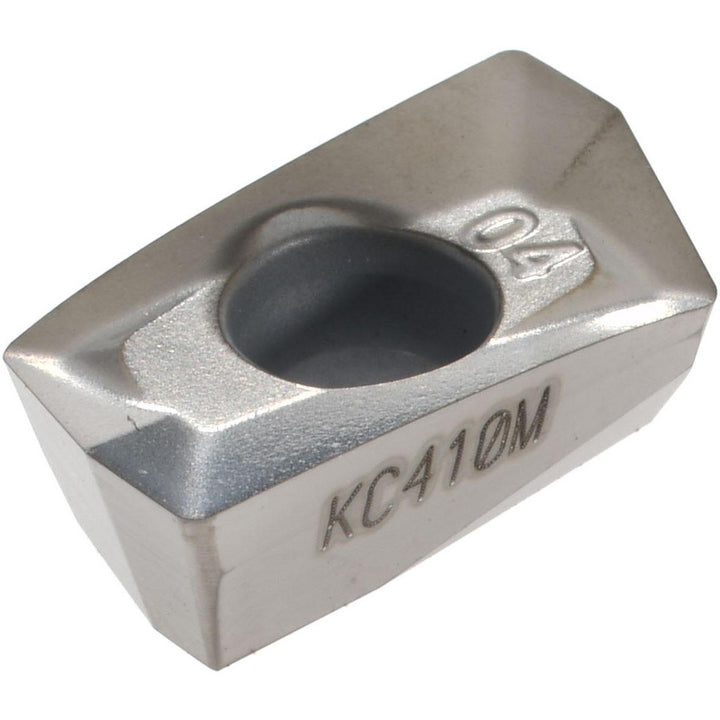

EDCT10T304PDFRLDJ Solid Carbide Insert, Grade KC410M, TiB2 - Kennametal 3682450

Kennametal

EDCT10T304PDFRLDJ Solid Carbide Insert, Grade KC410M, TiB2 - Kennametal 3682450

MFR# 3682450ISO/ANSI# EDCT10T304PDFRLDJCat# EDCT10T304PDFRLDJSeries EDCT

$29.94List $36.55 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC17/64
ShapeParallelogram
GradeKC410M
MaterialSolid Carbide
CoatingTiB2

Description

The Kennametal 3682450 is a EDCT10T304PDFRLDJ solid carbide indexable insert, grade KC410M, TiB2 coated. Suited for non-ferrous metal.

Specifications

Ansi codeEC1004FLDJ
Chip breakerLD
Coating finishTiB2
Coating processPVD
Corner radius in1/64
Cutter series compatibilityMill 1-10
Cutting edge styleSharp
Included angle degree70
Inscribed circle in17/64
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code10T304
Insert styleEDCT
Iso codeEDCT10T304PDFRLDJ
Length0.4740
Length range0.4500 to 0.5000
Manufacturers catalog numberEDCT10T304PDFRLDJ
Manufacturer gradeKC410M
Material applicationNon-Ferrous Metal
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle15
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1480
Thickness range0.1250 to 0.1500
Width in17/64
