Kennametal

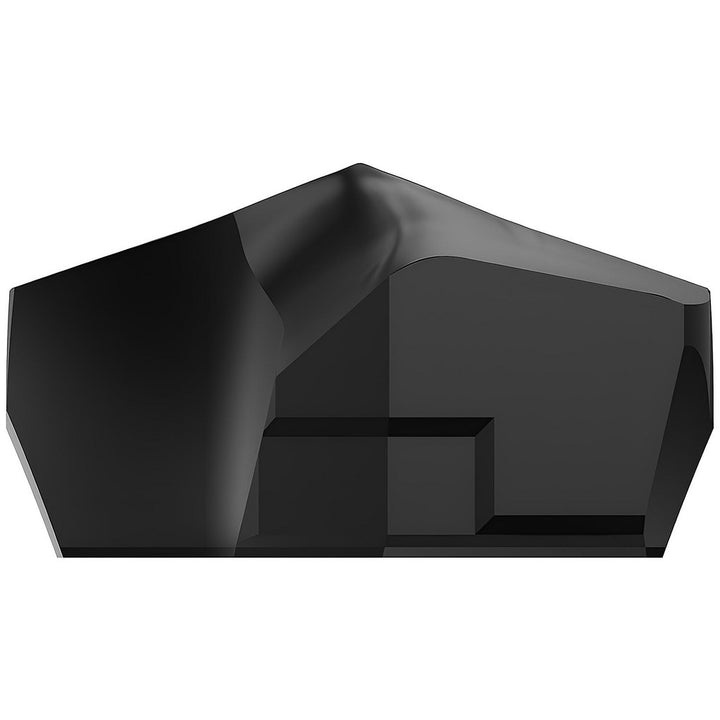

Carbide Insert, Grade KC7315, TiAlN - Kennametal 3690720
MFR# 3690720Series KSEM
$264.43List $317.16
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeKC7315
CoatingTiAlN
Description
The Kennametal 3690720 is a carbide indexable insert, grade KC7315, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter1.0630
Drill point angle140
Flute length (mm)13.00
Flute typeHelical
Functional length0.5315
Height in17/32
Included angle degree140
Insert geometryHPG
Insert holding methodClamp
Insert seat size6
Iso numberKSEMP2700HPGM
Manufacturer gradeKC7315
Material gradeFine Grain
Number of flutes2
Overall length projection0.5315
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Spiral typeRegular Spiral
StyleKSEM
Tip materialSolid Carbide
