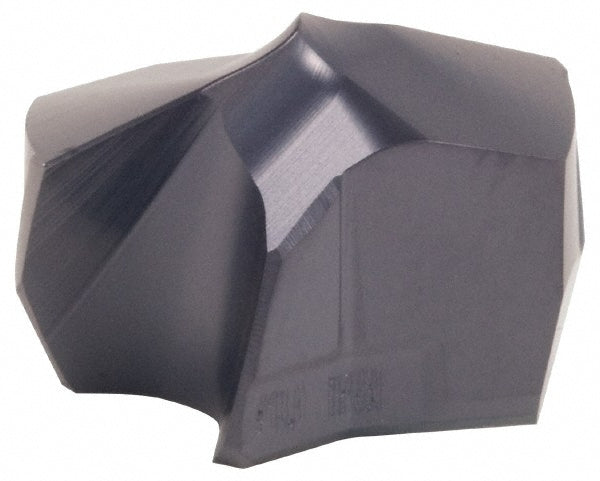

Carbide Insert, Grade KC7315, TiAlN - Kennametal 3690721

Kennametal

Carbide Insert, Grade KC7315, TiAlN - Kennametal 3690721

MFR# 3690721Series KSEM

$223.99List $273.41 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeKC7315
CoatingTiAlN

Description

The Kennametal 3690721 is a carbide indexable insert, grade KC7315, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.

Specifications

ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter1.1024
Drill point angle140
Flute length (mm)14.00
Flute typeHelical
Functional length0.5510
Height (mm)14.00
Included angle degree140
Insert geometryHPG
Insert holding methodClamp
Insert seat size6
Iso numberKSEMP2800HPGM
Manufacturer gradeKC7315
Material gradeFine Grain
Number of flutes2
Overall length projection0.5510
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Spiral typeRegular Spiral
StyleKSEM
Tip materialSolid Carbide
