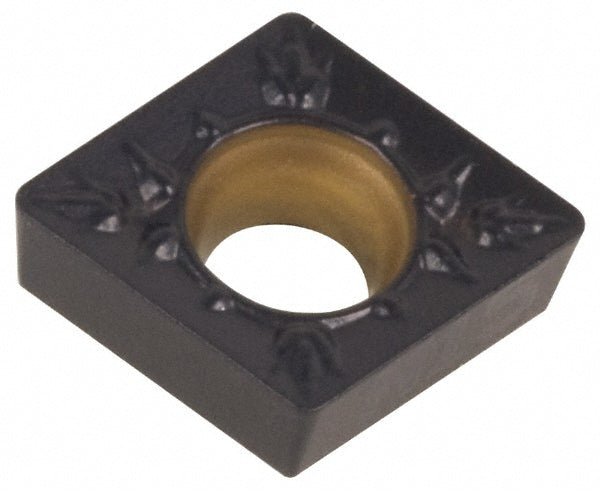

C - Diamond (Rhombic) 80-Deg 3/8" IC Carbide Insert, Grade KCS10, AlTiN - Kennametal 3744980

Kennametal

C - Diamond (Rhombic) 80-Deg 3/8" IC Carbide Insert, Grade KCS10, AlTiN - Kennametal 3744980

MFR# 3744980ISO/ANSI# CPMT09T308Series Screw-On

$29.66List $36.21 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCS10
MaterialCarbide
CoatingAlTiN

Description

The Kennametal 3744980 is a carbide indexable insert, grade KCS10, AlTiN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi insert codeCPMT3252
Ansi size code3252
Chip breakerMP
Chip breaker operationRoughing; Medium Machining
Clearance codeP
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.1732
Included angle80
Industry standard numberCPMT3252MP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3808
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code3252
Insert styleCPMT
Insert thickness in5/32
Iso insert codeCPMT09T308
Iso size code09T308
Length range0.3000 - 0.4000
Manufacturers catalog number3744980
Manufacturer gradeKCS10
Material gradeC3; C4
Maximum depth of cut0.1268
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle12
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
