Kennametal

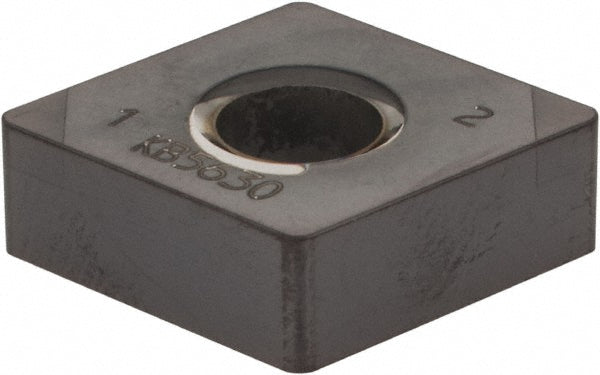

CNGA120408S01025MT PCBN Insert, Grade KB5630, AlTiN - Kennametal 3747141
MFR# 3747141ISO/ANSI# CNGA120408Series KENLOC
$136.85List $164.10
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeKB5630
MaterialPCBN
CoatingAlTiN
Description
The Kennametal 3747141 is a CNGA120408S01025MT pcbn indexable insert, grade KB5630, AlTiN coated. Suited for hard material.
Specifications
Ansi insert codeCNGA432
Ansi size code432
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsCast Iron (K) - High Wear-Resistance; Special, Super Alloys (S) - High Wear-Resistance
Hole diameter0.2031
Included angle80
Industry standard numberCNGA432S0425MT
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialPCBN
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNGA
Insert thickness in3/16
Iso codeCNGA120408S01025MT
Iso insert codeCNGA120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number3747141
Manufacturer gradeKB5630
Material gradeH25; H35
Maximum depth of cut0.1691
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
