Kennametal

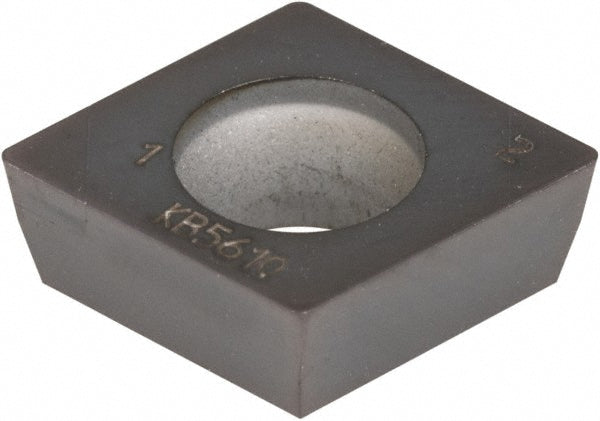

CPGW09T304S01015MT PCBN Insert, Grade KB5630, AlTiN - Kennametal 3747237
MFR# 3747237ISO/ANSI# CPGW09T304Series KENLOC
$136.21List $163.33
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeKB5630
MaterialPCBN
CoatingAlTiN
Description
The Kennametal 3747237 is a CPGW09T304S01015MT pcbn indexable insert, grade KB5630, AlTiN coated. Suited for hard material.
Specifications
Ansi insert codeCPGW3251
Ansi size code3251
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeP
Coating finishAlTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsCast Iron (K) - High Wear-Resistance; Special, Super Alloys (S) - High Wear-Resistance
Hole diameter0.1732
Included angle80
Industry standard numberCPGW3251S0415MT
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3808
Insert materialPCBN
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code3251
Insert styleCPGW
Insert thickness in5/32
Iso codeCPGW09T304S01015MT
Iso insert codeCPGW09T304
Iso size code09T304
Length range0.3000 - 0.4000
Manufacturers catalog number3747237
Manufacturer gradeKB5630
Material gradeH25; H35
Maximum depth of cut0.1268
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakePositive
Rake angle0
Relief angle11
Side clearancePositive
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
