Kennametal

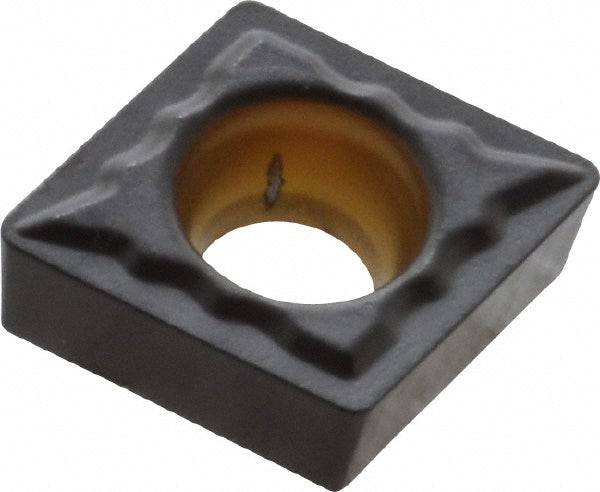

C - Diamond (Rhombic) 80-Deg 1/4" IC Carbide Insert, Grade KCP10, TiCN - Kennametal 3749298
MFR# 3749298ISO/ANSI# CCMT060204Series Screw-On
$30.05List $36.04
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCP10
MaterialCarbide
CoatingTiCN
Description
The Kennametal 3749298 is a carbide indexable insert, grade KCP10, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeCCMT2151
Ansi size code2151
Chip breakerUF
Chip breaker operationFinishing
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1102
Included angle80
Industry standard numberCCMT2151UF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code2151
Insert styleCCMT
Insert thickness in3/32
Iso insert codeCCMT060204
Iso size code060204
Length range0.0000 - 0.3000
Manufacturers catalog number3749298
Manufacturer gradeKCP10
Material gradeC3; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle5
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
