Kennametal

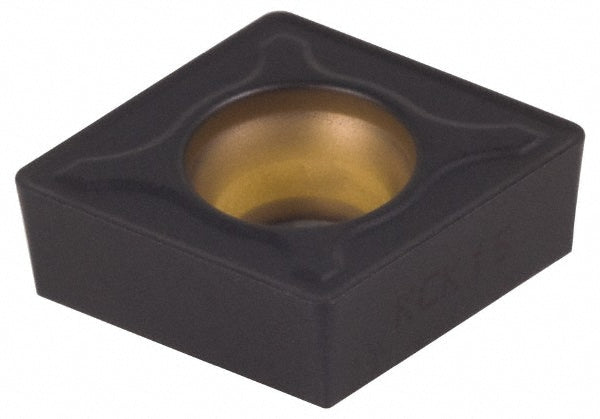

C - Diamond (Rhombic) 80-Deg 3/8" IC Carbide Insert, Grade KCP10, TiCN - Kennametal 3749444
MFR# 3749444ISO/ANSI# CCMT09T312Series Screw-On
$35.10List $42.10
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCP10
MaterialCarbide
CoatingTiCN
Description
The Kennametal 3749444 is a carbide indexable insert, grade KCP10, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeCCMT3253
Ansi size code3253
Chip breakerMF
Chip breaker operationFinishing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1732
Included angle80
Industry standard numberCCMT3253MF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3808
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code3253
Insert styleCCMT
Insert thickness in5/32
Iso insert codeCCMT09T312
Iso size code09T312
Length range0.3000 - 0.4000
Manufacturers catalog number3749444
Manufacturer gradeKCP10
Material gradeC3; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle0
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
