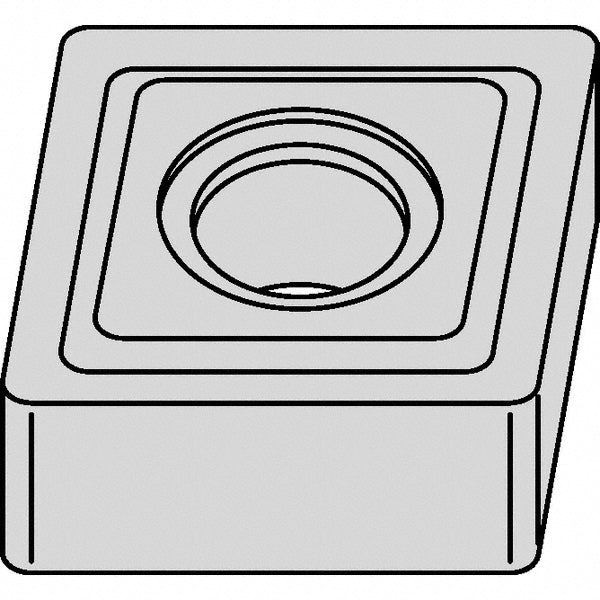

C - Diamond (Rhombic) 80-Deg 3/4" IC Carbide Insert, Grade KCP25, TiCN - Kennametal 3751519

Kennametal

C - Diamond (Rhombic) 80-Deg 3/4" IC Carbide Insert, Grade KCP25, TiCN - Kennametal 3751519

MFR# 3751519ISO/ANSI# CNMG190612Series KENLOC

$61.59List $73.87 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCP25
MaterialCarbide
CoatingTiCN

Description

The Kennametal 3751519 is a carbide indexable insert, grade KCP25, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi insert codeCNMG643
Ansi size code643
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.3125
Included angle80
Industry standard numberCNMG643
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.7616
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Iso insert codeCNMG190612
Iso size code190612
Length range0.7000 - 10.0000
Manufacturers catalog number3751519
Manufacturer gradeKCP25
Material gradeC2; C3; C6; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/4
Wiper edgeNo
