Kennametal

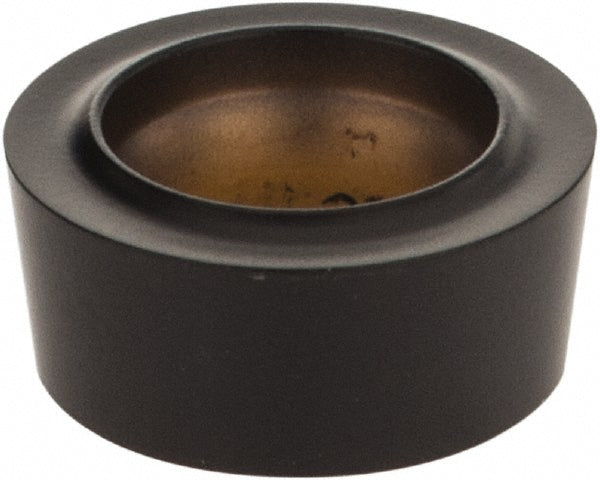

R - Round 3/8" IC Carbide Insert, Grade KCP25, TiCN - Kennametal 3751554
MFR# 3751554ISO/ANSI# RCMT097300Series Screw-On
$20.89List $25.50
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeR - Round
GradeKCP25
MaterialCarbide
CoatingTiCN
Description
The Kennametal 3751554 is a carbide indexable insert, grade KCP25, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeRCMT32.5
Ansi size code32.5
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in3/16
Cutting edge styleHoned
Full radiusYes
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1732
Included angle360
Industry standard numberRCMT325
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialCarbide
Insert shapeR - Round
Insert size code32
Insert styleRCMT
Insert thickness in5/32
Iso insert codeRCMT097300
Iso size code097300
Length range0.3000 - 0.4000
Manufacturers catalog number3751554
Manufacturer gradeKCP25
Material gradeC2; C3; C6; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
