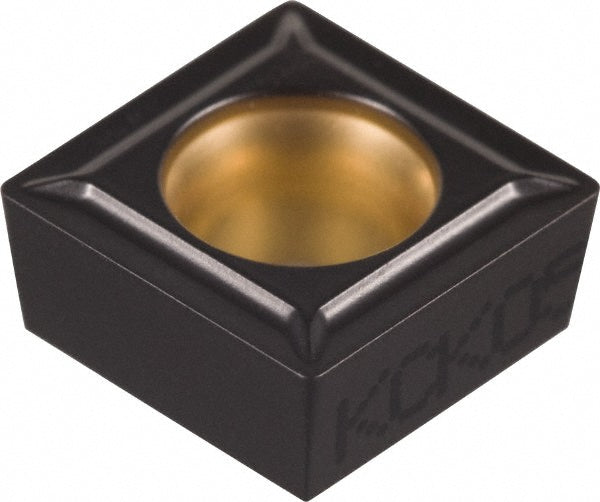

Square 3/8" IC Carbide Insert, Grade KCP25, TiCN - Kennametal 3751590

Kennametal

Square 3/8" IC Carbide Insert, Grade KCP25, TiCN - Kennametal 3751590

MFR# 3751590ISO/ANSI# SCMT3252LFSeries Screw-On

$29.73List $36.29 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeSquare
GradeKCP25
MaterialCarbide
CoatingTiCN

Description

The Kennametal 3751590 is a carbide indexable insert, grade KCP25, TiCN coated. Suited for steel, cast iron.

Specifications

Chip breakerLF
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle90degree
Industry standard numberSCMT3252LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialCarbide
Insert shapeSquare
Insert size code3252
Insert styleSCMT
Insert thickness in5/32
Length range0.3000 - 0.4000
Manufacturers catalog number3751590
Manufacturer gradeKCP25
Material gradeC2; C3; C6; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle5
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
