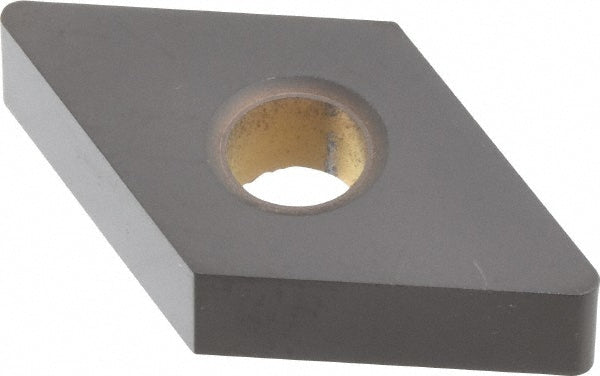

Diamond 55 1/2" IC Carbide Insert, Grade KCK05, TiCN - Kennametal 3751910

Kennametal

Diamond 55 1/2" IC Carbide Insert, Grade KCK05, TiCN - Kennametal 3751910

MFR# 3751910ISO/ANSI# DNMA432Series KENLOC

$33.36List $40.72 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeKCK05
MaterialCarbide
CoatingTiCN

Description

The Kennametal 3751910 is a carbide indexable insert, grade KCK05, TiCN coated. Suited for steel, cast iron.

Specifications

Chip breakerFlat Top
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2031
Included angle55degree
Industry standard numberDNMA432
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.2208
Insert materialCarbide
Insert shapeDiamond 55
Insert size code432
Insert styleDNMA
Insert thickness in3/16
Length range0.7000 - 10.0000
Manufacturers catalog number3751910
Manufacturer gradeKCK05
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
