Kennametal

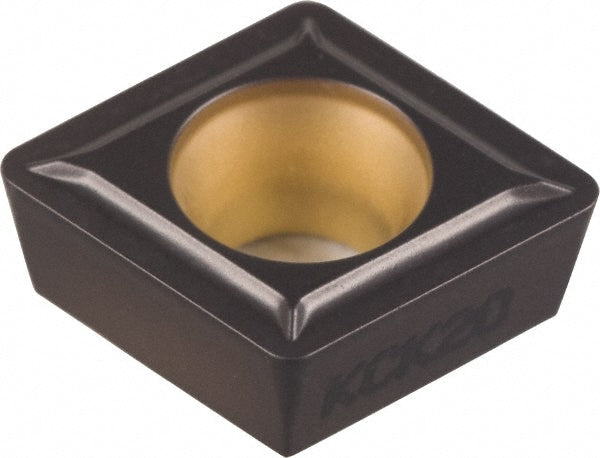

C - Diamond (Rhombic) 80-Deg 1/4" IC Carbide Insert, Grade KCK05, TiCN - Kennametal 3752075
MFR# 3752075ISO/ANSI# CPMT060208Series Screw-On
$25.79List $31.47
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCK05
MaterialCarbide
CoatingTiCN
Description
The Kennametal 3752075 is a carbide indexable insert, grade KCK05, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeCPMT2152
Ansi size code2152
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeP
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance
Hole diameter0.1102
Included angle80
Industry standard numberCPMT2152LF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code2152
Insert styleCPMT
Insert thickness in3/32
Iso insert codeCPMT060208
Iso size code060208
Length range0.0000 - 0.3000
Manufacturers catalog number3752075
Manufacturer gradeKCK05
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle5
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
