Kennametal

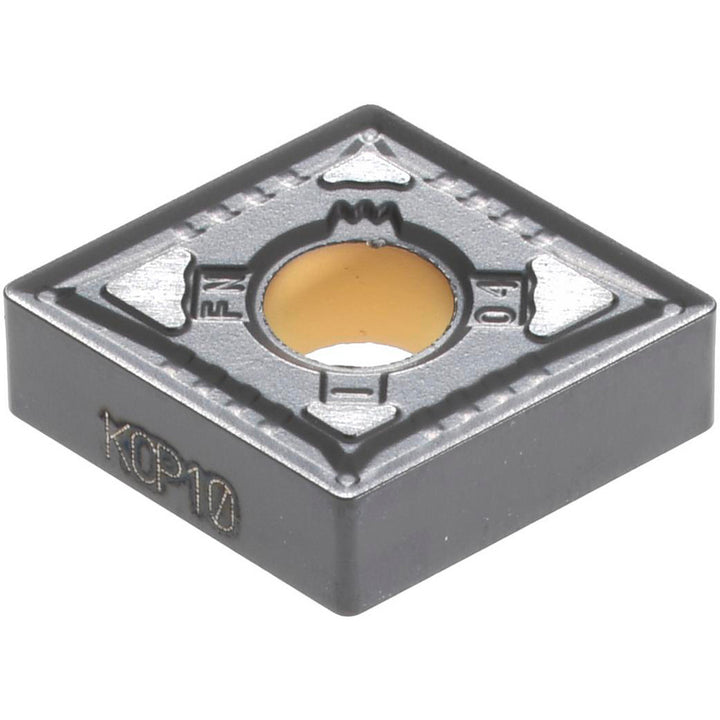

C - Diamond (Rhombic) 80-Deg 3/8" IC Carbide Insert, Grade KCP10, TiCN - Kennametal 3753209
MFR# 3753209ISO/ANSI# CNMG090304Series KENLOC
$22.64List $27.16
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCP10
MaterialCarbide
CoatingTiCN
Description
The Kennametal 3753209 is a carbide indexable insert, grade KCP10, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeCNMG321
Ansi size code321
Chip breakerFN
Chip breaker operationFinishing
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1500
Included angle80
Industry standard numberCNMG321FN
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3808
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code321
Insert styleCNMG
Insert thickness in1/8
Iso insert codeCNMG090304
Iso size code090304
Length range0.3000 - 0.4000
Manufacturers catalog number3753209
Manufacturer gradeKCP10
Material gradeC3; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle10
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
