Kennametal

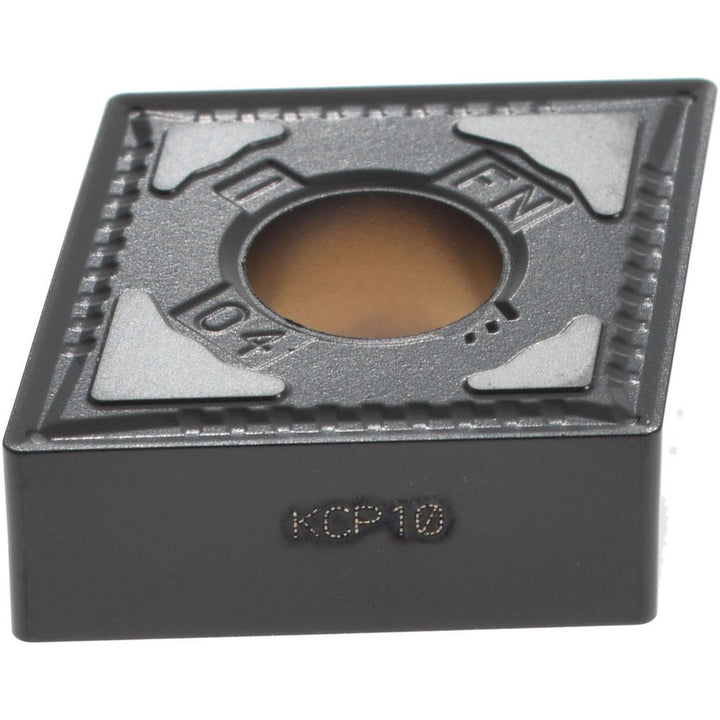

C - Diamond (Rhombic) 80-Deg 1/2" IC Carbide Insert, Grade KCP10, TiCN - Kennametal 3753211
MFR# 3753211ISO/ANSI# CNMG120404Series KENLOC
$25.38List $30.98
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCP10
MaterialCarbide
CoatingTiCN
Description
The Kennametal 3753211 is a carbide indexable insert, grade KCP10, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeCNMG431
Ansi size code431
Chip breakerFN
Chip breaker operationFinishing
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2031
Included angle80
Industry standard numberCNMG431FN
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso insert codeCNMG120404
Iso size code120404
Length range0.5000 - 0.6000
Manufacturers catalog number3753211
Manufacturer gradeKCP10
Material gradeC3; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle10
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
