Kennametal

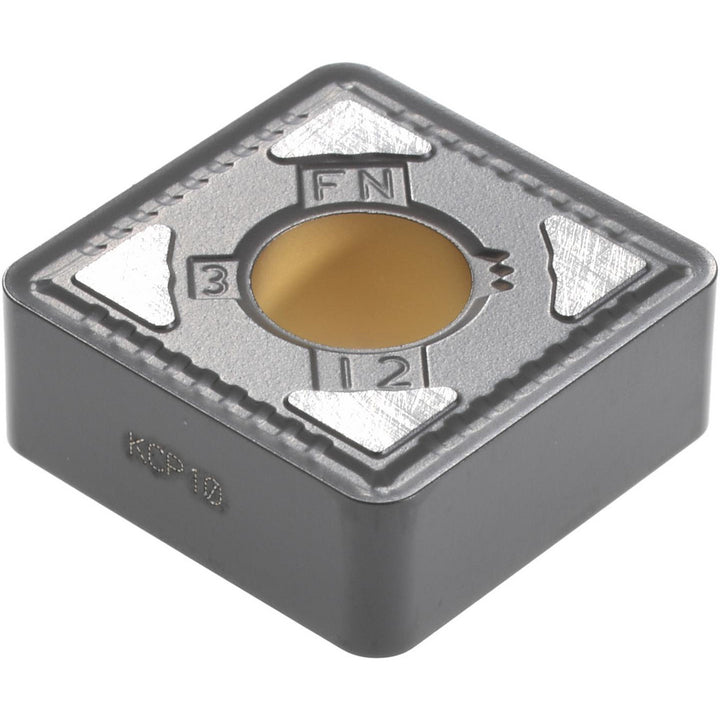

SNMG433 Carbide Insert, Grade KCP10, TiCN - Kennametal 3753228
MFR# 3753228ISO/ANSI# SNMG120412Series KENLOC
$23.52List $28.71
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeS - Square
GradeKCP10
MaterialCarbide
CoatingTiCN
Description
The Kennametal 3753228 is a SNMG433 carbide indexable insert, grade KCP10, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeSNMG433
Ansi size code433
Chip breakerFN
Chip breaker operationFinishing
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in3/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2031
Included angle90
Industry standard numberSNMG433FN
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeS - Square
Insert size code433
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG433
Iso insert codeSNMG120412
Iso size code120412
Length range0.5000 - 0.6000
Manufacturers catalog number3753228
Manufacturer gradeKCP10
Material gradeC3; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle10
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
