Kennametal

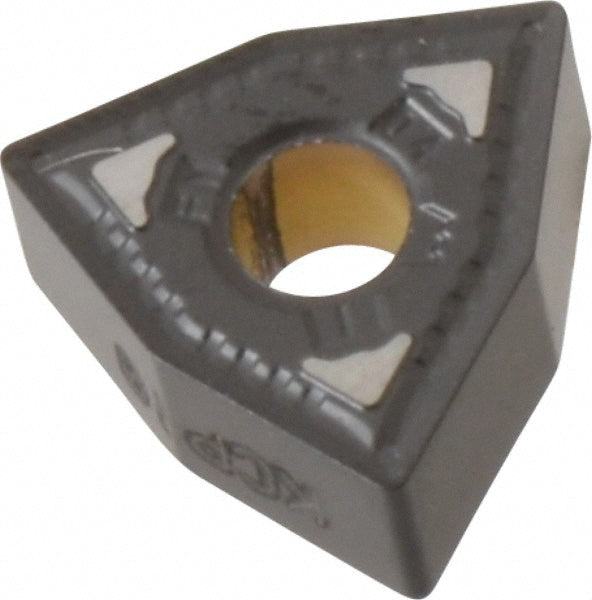

Trigon 3/8" IC Carbide Insert, Grade KCP10, TiCN - Kennametal 3753240
MFR# 3753240ISO/ANSI# WNMG331FNSeries KENLOC
$21.90List $26.73
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeKCP10
MaterialCarbide
CoatingTiCN
Description
The Kennametal 3753240 is a carbide indexable insert, grade KCP10, TiCN coated. Suited for steel, cast iron.
Specifications
Chip breakerFN
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1500
Included angle80degree
Industry standard numberWNMG331FN
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5130
Insert materialCarbide
Insert shapeTrigon
Insert size code331
Insert styleWNMG
Insert thickness in3/16
Length range0.5000 - 0.6000
Manufacturers catalog number3753240
Manufacturer gradeKCP10
Material gradeC3; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle10
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.5130in
Wiper edgeNo
