Kennametal

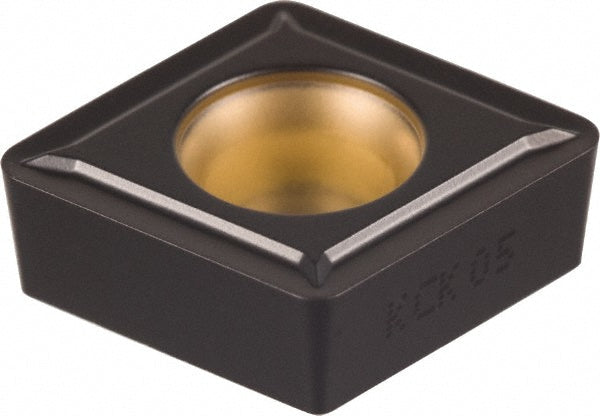

Diamond 80 1/4" IC Carbide Insert, Grade KCP10, TiCN - Kennametal 3753244
MFR# 3753244ISO/ANSI# CCMT2151LFSeries Screw-On
$30.05List $36.04
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeKCP10
MaterialCarbide
CoatingTiCN
Description
The Kennametal 3753244 is a carbide indexable insert, grade KCP10, TiCN coated. Suited for steel, cast iron.
Specifications
Chip breakerLF
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1142
Included angle80degree
Industry standard numberCCMT2151LF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeDiamond 80
Insert size code2151
Insert styleCCMT
Insert thickness in3/32
Length range0.0000 - 0.3000
Manufacturers catalog number3753244
Manufacturer gradeKCP10
Material gradeC3; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle5
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
