Kennametal

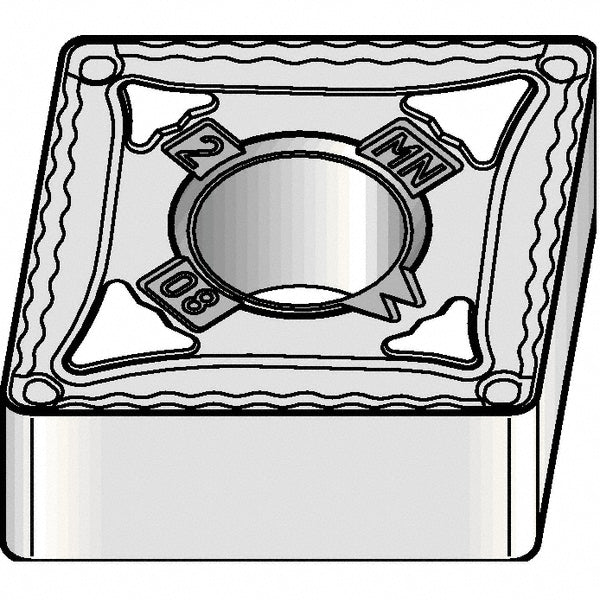

C - Diamond (Rhombic) 80-Deg 5/8" IC Carbide Insert, Grade KCP25, TiCN - Kennametal 3753440
MFR# 3753440ISO/ANSI# CNMG160616Series KENLOC
$34.24List $41.06
Save 16%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCP25
MaterialCarbide
CoatingTiCN
Description
The Kennametal 3753440 is a carbide indexable insert, grade KCP25, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeCNMG544
Ansi size code544
Chip breakerMN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/16
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2500
Included angle80
Industry standard numberCNMG544MN
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6346
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code544
Insert styleCNMG
Insert thickness in1/4
Iso insert codeCNMG160616
Iso size code160616
Length range0.6000 - 0.6500
Manufacturers catalog number3753440
Manufacturer gradeKCP25
Material gradeC2; C3; C6; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in5/8
Wiper edgeNo
