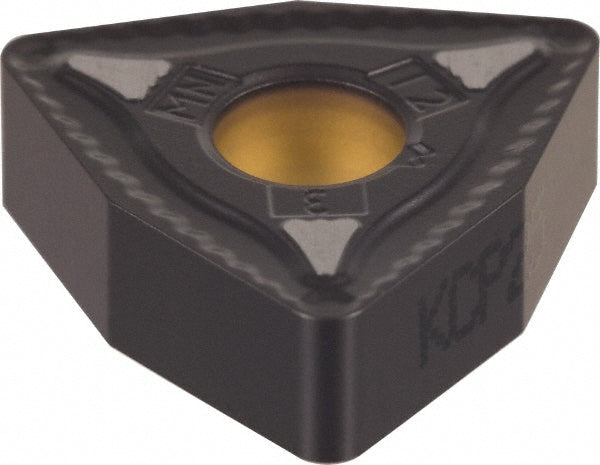

Trigon 1/2" IC Carbide Insert, Grade KCP25, TiCN - Kennametal 3753475

Kennametal

Trigon 1/2" IC Carbide Insert, Grade KCP25, TiCN - Kennametal 3753475

MFR# 3753475ISO/ANSI# WNMG433MNSeries KENLOC

$21.19List $25.86 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTrigon
GradeKCP25
MaterialCarbide
CoatingTiCN

Description

The Kennametal 3753475 is a carbide indexable insert, grade KCP25, TiCN coated. Suited for steel, cast iron.

Specifications

Chip breakerMN
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2031
Included angle80
Industry standard numberWNMG433MN
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCarbide
Insert shapeTrigon
Insert size code433
Insert styleWNMG
Insert thickness in3/16
Length range0.6500 - 0.7000
Manufacturers catalog number3753475
Manufacturer gradeKCP25
Material gradeC2; C3; C6; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.684
Wiper edgeNo
