Kennametal

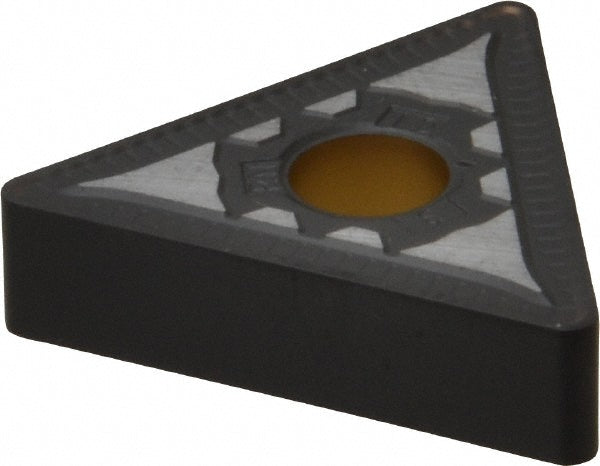

T - Triangle 5/8" IC Carbide Insert, Grade KCP25, TiCN - Kennametal 3753552
MFR# 3753552ISO/ANSI# TNMG270612Series KENLOC
$57.97List $69.53
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeT - Triangle
GradeKCP25
MaterialCarbide
CoatingTiCN
Description
The Kennametal 3753552 is a carbide indexable insert, grade KCP25, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeTNMG543
Ansi size code543
Chip breakerRN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2500
Included angle60
Industry standard numberTNMG543RN
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.0820
Insert materialCarbide
Insert shapeT - Triangle
Insert size code543
Insert styleTNMG
Insert thickness in1/4
Iso insert codeTNMG270612
Iso size code270612
Length range0.7000 - 10.0000
Manufacturers catalog number3753552
Manufacturer gradeKCP25
Material gradeC2; C3; C6; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width1.0820
Wiper edgeNo
