Kennametal

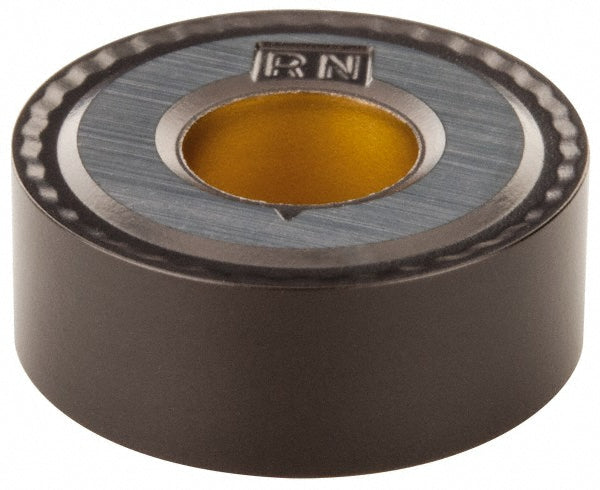

R - Round 1/2" IC Carbide Insert, Grade KCP30, TiN - Kennametal 3753641
MFR# 3753641ISO/ANSI# RNMG120400Series KENLOC
$26.06List $31.25
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeR - Round
GradeKCP30
MaterialCarbide
CoatingTiN
Description
The Kennametal 3753641 is a carbide indexable insert, grade KCP30, TiN coated. Suited for steel.
Specifications
Ansi insert codeRNMG43
Ansi size code43
Chip breakerRN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiN
Coating processMTCVD
Corner radius in1/4
Cutting edge styleChamfered; Honed
Full radiusYes
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle360
Industry standard numberRNMG43RN
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeR - Round
Insert size code43
Insert styleRNMG
Insert thickness in3/16
Iso insert codeRNMG120400
Iso size code120400
Length range0.5000 - 0.6000
Manufacturers catalog number3753641
Manufacturer gradeKCP30
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
