Kennametal

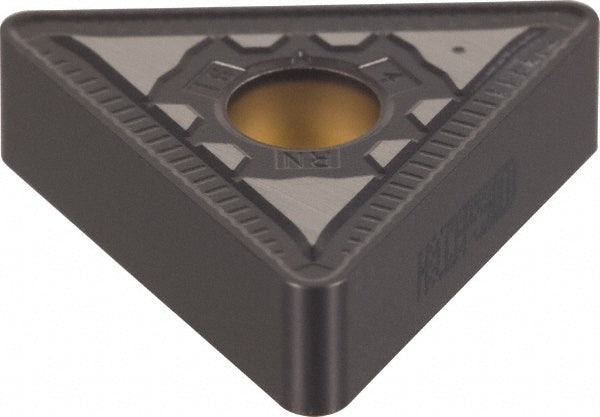

T - Triangle 5/8" IC Carbide Insert, Grade KCP30, TiN - Kennametal 3753658
MFR# 3753658ISO/ANSI# TNMG270608Series KENLOC
$49.11List $59.94
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeT - Triangle
GradeKCP30
MaterialCarbide
CoatingTiN
Description
The Kennametal 3753658 is a carbide indexable insert, grade KCP30, TiN coated. Suited for steel.
Specifications
Ansi insert codeTNMG542
Ansi size code542
Chip breakerRN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness
Hole diameter0.2500
Included angle60
Industry standard numberTNMG542RN
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.0820
Insert materialCarbide
Insert shapeT - Triangle
Insert size code542
Insert styleTNMG
Insert thickness in1/4
Iso insert codeTNMG270608
Iso size code270608
Length range0.7000 - 10.0000
Manufacturers catalog number3753658
Manufacturer gradeKCP30
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width1.0820
Wiper edgeNo
