Kennametal

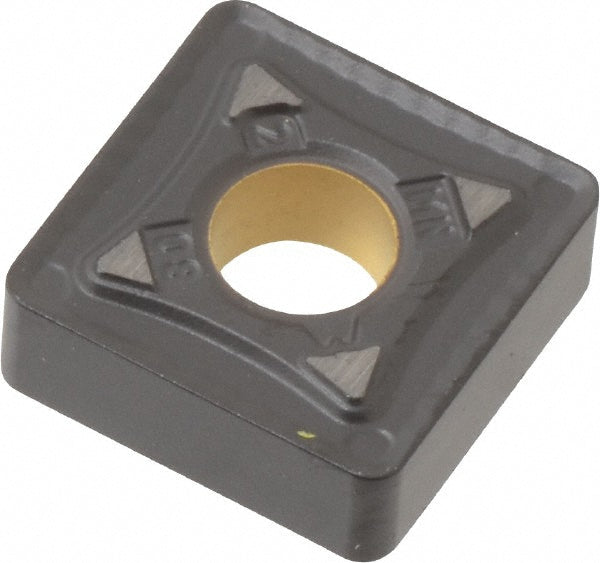

SNMG322 Carbide Insert, Grade KCP30, TiN - Kennametal 3753784
MFR# 3753784ISO/ANSI# SNMG090308Series KENLOC
$18.53List $22.62
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeS - Square
GradeKCP30
MaterialCarbide
CoatingTiN
Description
The Kennametal 3753784 is a SNMG322 carbide indexable insert, grade KCP30, TiN coated. Suited for steel.
Specifications
Ansi insert codeSNMG322
Ansi size code322
Chip breakerMN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness
Hole diameter0.1500
Included angle90
Industry standard numberSNMG322MN
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in3/8
Insert materialCarbide
Insert shapeS - Square
Insert size code322
Insert styleSNMG
Insert thickness in1/8
Iso codeSNMG322
Iso insert codeSNMG090308
Iso size code090308
Length range0.3000 - 0.4000
Manufacturers catalog number3753784
Manufacturer gradeKCP30
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
