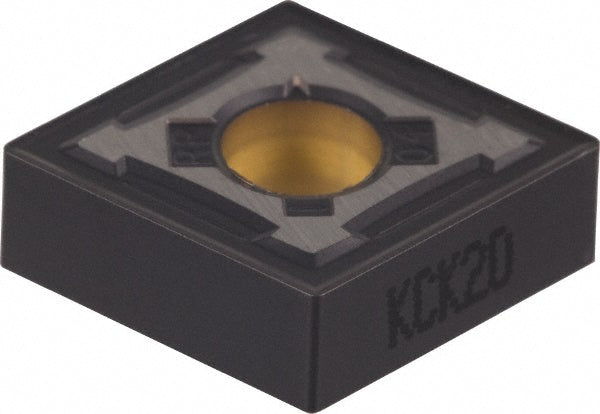

C - Diamond (Rhombic) 80-Deg 5/8" IC Carbide Insert, Grade KCK20, AlTiN - Kennametal 3753879
MFR# 3753879ISO/ANSI# CNMG160616Series KENLOC
$33.64List $41.06
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCK20
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 3753879 is a carbide indexable insert, grade KCK20, AlTiN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeCNMG544
Ansi size code544
Chip breakerRP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in1/16
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2500
Included angle80
Industry standard numberCNMG544RP
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6346
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code544
Insert styleCNMG
Insert thickness in1/4
Iso insert codeCNMG160616
Iso size code160616
Length range0.6000 - 0.6500
Manufacturers catalog number3753879
Manufacturer gradeKCK20
Material gradeK10; K25
Maximum depth of cut0.0500
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle5
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in5/8
Wiper edgeNo
