Kennametal

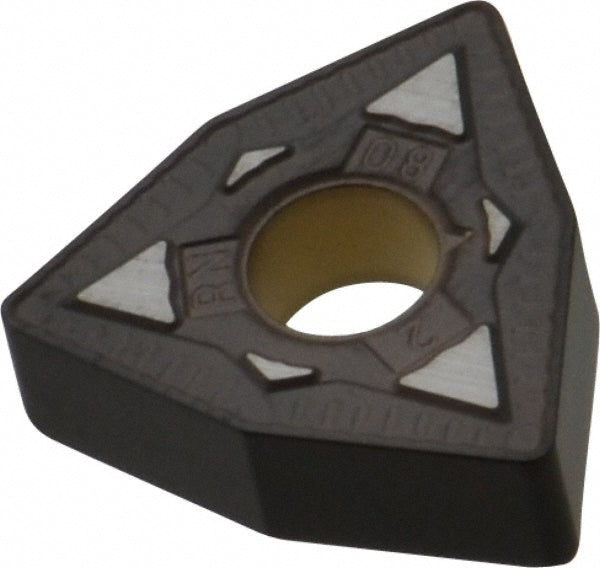

W - Trigon 80-Deg 1/2" IC Carbide Insert, Grade KCP40, TiN - Kennametal 3754015
MFR# 3754015ISO/ANSI# WNMG080402Series KENLOC
$25.82List $31.52
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeKCP40
MaterialCarbide
CoatingTiN
Description
The Kennametal 3754015 is a carbide indexable insert, grade KCP40, TiN coated. Suited for steel, stainless steel.
Specifications
Ansi insert codeWNMG432
Ansi size code432
Chip breakerRN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle80
Industry standard numberWNMG432RN
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso insert codeWNMG080402
Iso size code080402
Length range0.6500 - 0.7000
Manufacturers catalog number3754015
Manufacturer gradeKCP40
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.6840
Wiper edgeNo
