Kennametal

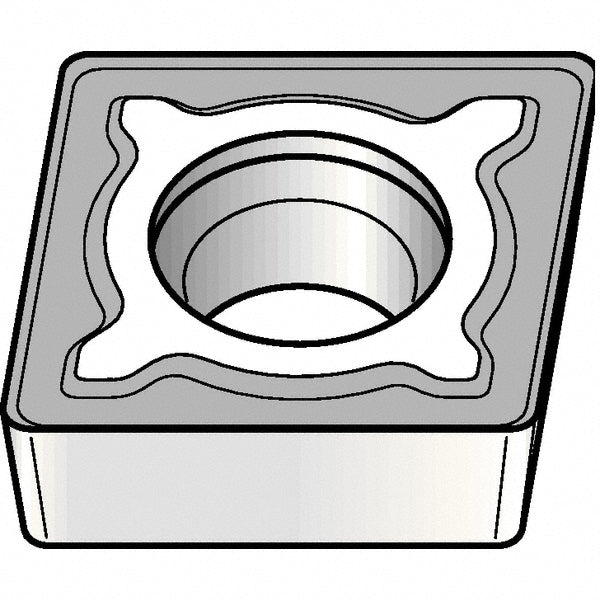

Diamond 80 3/8" IC Carbide Insert, Grade KCP30, TiN - Kennametal 3754345
MFR# 3754345ISO/ANSI# CCMT3252MFSeries Screw-On
$29.73List $36.29
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeKCP30
MaterialCarbide
CoatingTiN
Description
The Kennametal 3754345 is a carbide indexable insert, grade KCP30, TiN coated. Suited for steel.
Specifications
Chip breakerMF
Clearance codeC
Coating finishTiN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1732
Included angle80degree
Industry standard numberCCMT3252MF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3808
Insert materialCarbide
Insert shapeDiamond 80
Insert size code3252
Insert styleCCMT
Insert thickness in5/32
Length range0.3000 - 0.4000
Manufacturers catalog number3754345
Manufacturer gradeKCP30
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle0
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
