Kennametal

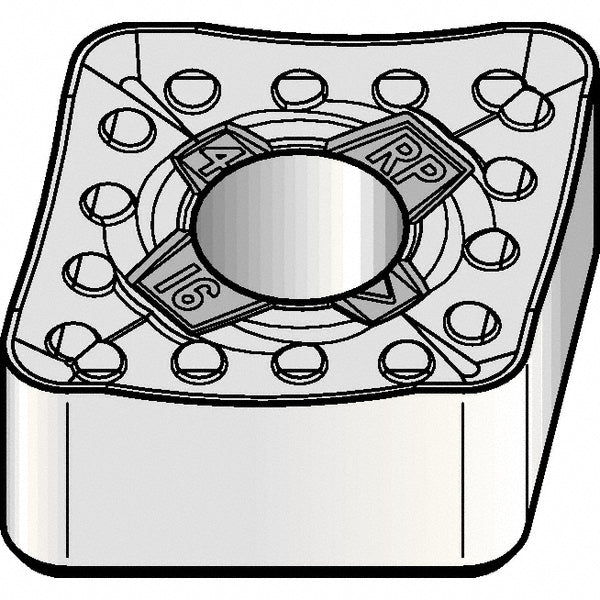

Diamond 80 1/2" IC Carbide Insert, Grade KCP30, TiN - Kennametal 3754367
MFR# 3754367ISO/ANSI# CNMM433RPSeries KENLOC
$25.81List $31.50
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeKCP30
MaterialCarbide
CoatingTiN
Description
The Kennametal 3754367 is a carbide indexable insert, grade KCP30, TiN coated. Suited for steel.
Specifications
Chip breakerRP
Clearance codeN
Coating finishTiN
Coating processMTCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2031
Included angle80degree
Industry standard numberCNMM433RP
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialCarbide
Insert shapeDiamond 80
Insert size code433
Insert styleCNMM
Insert thickness in3/16
Length range0.5000 - 0.6000
Manufacturers catalog number3754367
Manufacturer gradeKCP30
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
