Kennametal

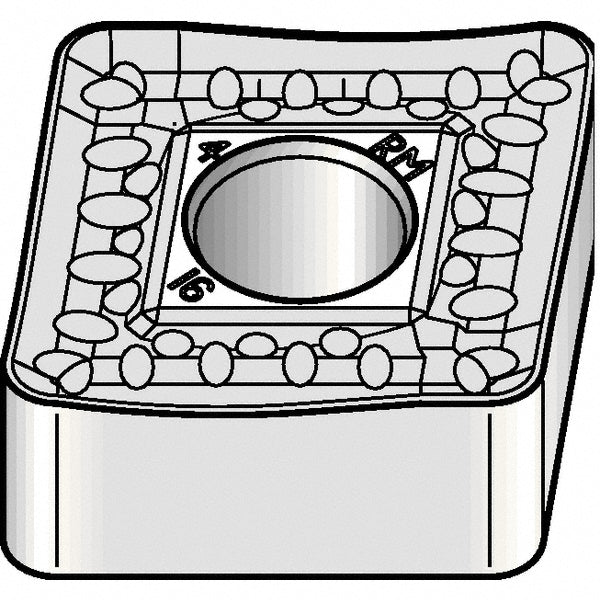

C - Diamond (Rhombic) 80-Deg 3/4" IC Carbide Insert, Grade KCP40, TiN - Kennametal 3754856
MFR# 3754856ISO/ANSI# CNMM190612Series KENLOC
$54.08List $66.01
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCP40
MaterialCarbide
CoatingTiN
Description
The Kennametal 3754856 is a carbide indexable insert, grade KCP40, TiN coated. Suited for steel, stainless steel.
Specifications
Ansi insert codeCNMM643
Ansi size code643
Chip breakerRM
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiN
Coating processMTCVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness
Hole diameter0.3125
Included angle80
Industry standard numberCNMM643RM
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.7616
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code643
Insert styleCNMM
Insert thickness in1/4
Iso insert codeCNMM190612
Iso size code190612
Length range0.7000 - 10.0000
Manufacturers catalog number3754856
Manufacturer gradeKCP40
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/4
Wiper edgeNo
