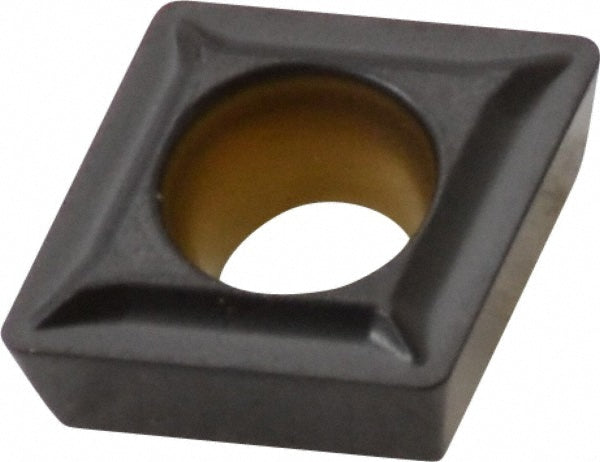

Diamond 80 1/4" IC Carbide Insert, Grade KCM15, TiCN - Kennametal 3755635

Kennametal

Diamond 80 1/4" IC Carbide Insert, Grade KCM15, TiCN - Kennametal 3755635

MFR# 3755635ISO/ANSI# CPMT2151LFSeries Screw-On

$25.79List $31.47 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeKCM15
MaterialCarbide
CoatingTiCN

Description

The Kennametal 3755635 is a carbide indexable insert, grade KCM15, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Chip breakerLF
Clearance codeP
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1142
Included angle80degree
Industry standard numberCPMT2151LF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeDiamond 80
Insert size code2151
Insert styleCPMT
Insert thickness in3/32
Length range0.0000 - 0.3000
Manufacturers catalog number3755635
Manufacturer gradeKCM15
Material gradeC2; C3
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle11
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
