Kennametal

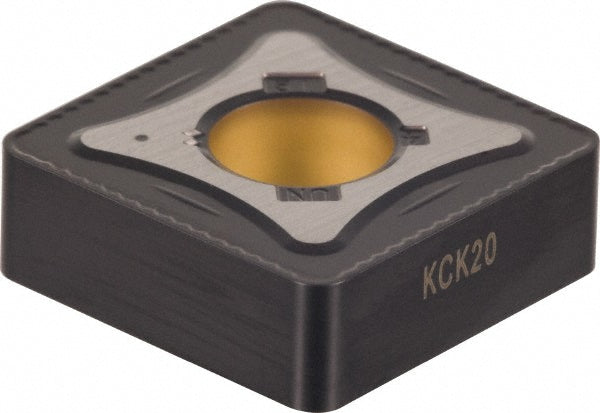

SNMG543 Carbide Insert, Grade KCK20, AlTiN - Kennametal 3757608
MFR# 3757608ISO/ANSI# SNMG150612Series KENLOC
$36.09List $44.05
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeS - Square
GradeKCK20
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 3757608 is a SNMG543 carbide indexable insert, grade KCK20, AlTiN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeSNMG543
Ansi size code543
Chip breakerUN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2500
Included angle90
Industry standard numberSNMG543UN
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in5/8
Insert materialCarbide
Insert shapeS - Square
Insert size code543
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG543
Iso insert codeSNMG150612
Iso size code150612
Length range0.6000 - 0.6500
Manufacturers catalog number3757608
Manufacturer gradeKCK20
Material gradeK10; K25
Maximum depth of cut0.0500
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in5/8
Wiper edgeNo
