Kennametal

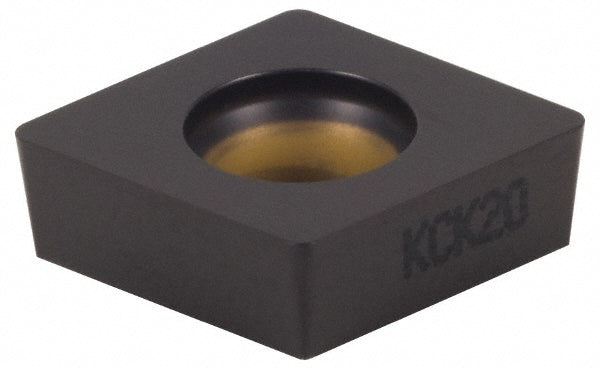

C - Diamond (Rhombic) 80-Deg 1/2" IC Carbide Insert, Grade KCK20, AlTiN - Kennametal 3757917
MFR# 3757917ISO/ANSI# CCMW120408Series Screw-On
$33.29List $40.64
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCK20
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 3757917 is a carbide indexable insert, grade KCK20, AlTiN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeCCMW432
Ansi size code432
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeC
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2165
Included angle80
Industry standard numberCCMW432
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5077
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCCMW
Insert thickness in3/16
Iso insert codeCCMW120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number3757917
Manufacturer gradeKCK20
Material gradeK10; K25
Maximum depth of cut0.1691
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle0
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
