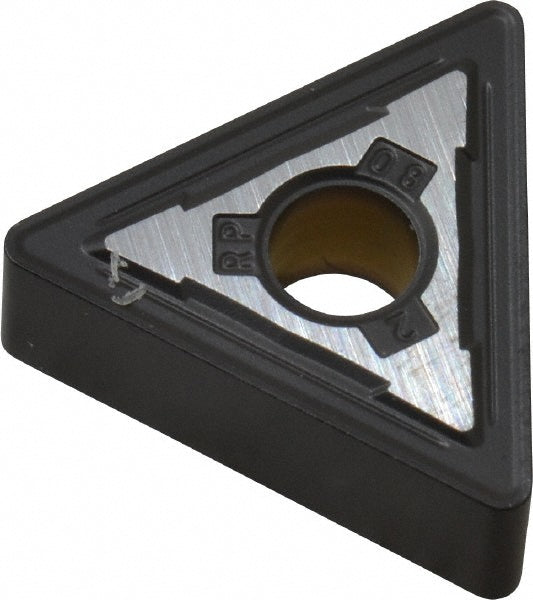

Triangle 3/8" IC Carbide Insert, Grade KCM15, TiCN - Kennametal 3758043

Kennametal

Triangle 3/8" IC Carbide Insert, Grade KCM15, TiCN - Kennametal 3758043

MFR# 3758043ISO/ANSI# TNMG332RPSeries KENLOC

$20.75List $25.32 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTriangle
GradeKCM15
MaterialCarbide
CoatingTiCN

Description

The Kennametal 3758043 is a carbide indexable insert, grade KCM15, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Chip breakerRP
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle60degree
Industry standard numberTNMG332RP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6495
Insert materialCarbide
Insert shapeTriangle
Insert size code332
Insert styleTNMG
Insert thickness in3/16
Length range0.6000 - 0.6500
Manufacturers catalog number3758043
Manufacturer gradeKCM15
Material gradeC2; C3
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle5
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.6495in
Wiper edgeNo
