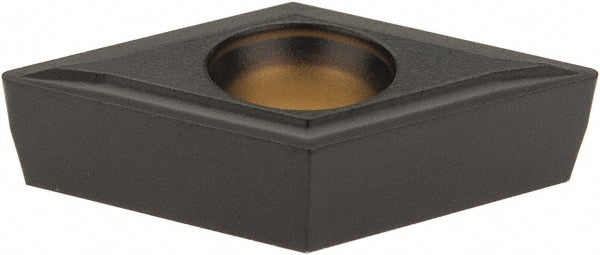

Diamond 55 3/8" IC Carbide Insert, Grade KCM25, TiN - Kennametal 3758092

Kennametal

Diamond 55 3/8" IC Carbide Insert, Grade KCM25, TiN - Kennametal 3758092

MFR# 3758092ISO/ANSI# DCMT3251LFSeries Screw-On

$23.56List $28.76 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeKCM25
MaterialCarbide
CoatingTiN

Description

The Kennametal 3758092 is a carbide indexable insert, grade KCM25, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Chip breakerLF
Clearance codeC
Coating finishTiN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle55degree
Industry standard numberDCMT3251LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9156
Insert materialCarbide
Insert shapeDiamond 55
Insert size code3251
Insert styleDCMT
Insert thickness in5/32
Length range0.7000 - 10.0000
Manufacturers catalog number3758092
Manufacturer gradeKCM25
Material gradeC1; C2
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
