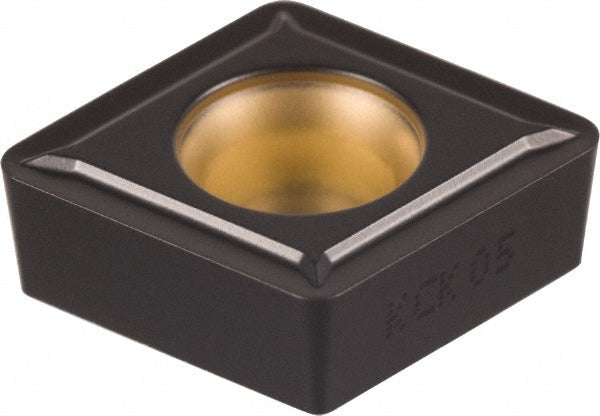

Diamond 80 3/8" IC Carbide Insert, Grade KCK20, AlTiN - Kennametal 3758169
MFR# 3758169ISO/ANSI# CCMT3252LFSeries Screw-On
$29.73List $36.29
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeKCK20
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 3758169 is a carbide indexable insert, grade KCK20, AlTiN coated. Suited for steel, cast iron.
Specifications
Chip breakerLF
Clearance codeC
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle80degree
Industry standard numberCCMT3252LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3808
Insert materialCarbide
Insert shapeDiamond 80
Insert size code3252
Insert styleCCMT
Insert thickness in5/32
Length range0.3000 - 0.4000
Manufacturers catalog number3758169
Manufacturer gradeKCK20
Material gradeK10; K25
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle5
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
