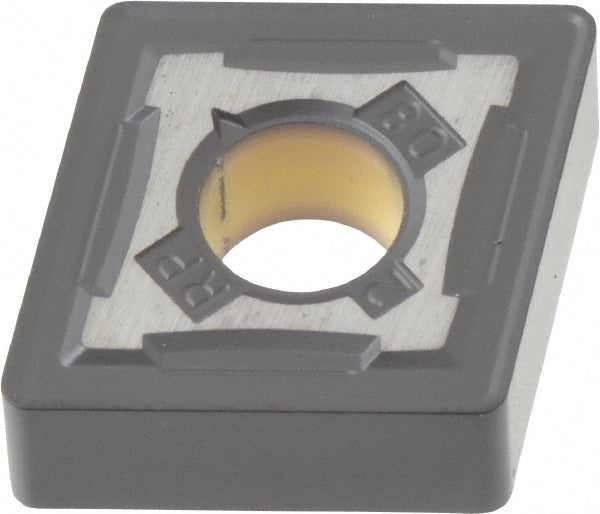

Diamond 80 1/2" IC Carbide Insert, Grade KCK20, AlTiN - Kennametal 3758175

Kennametal

Diamond 80 1/2" IC Carbide Insert, Grade KCK20, AlTiN - Kennametal 3758175

MFR# 3758175ISO/ANSI# CNMG432RPSeries KENLOC

$25.38List $30.98 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeKCK20
MaterialCarbide
CoatingAlTiN

Description

The Kennametal 3758175 is a carbide indexable insert, grade KCK20, AlTiN coated. Suited for steel, cast iron.

Specifications

Chip breakerRP
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2031
Included angle80degree
Industry standard numberCNMG432RP
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Length range0.5000 - 0.6000
Manufacturers catalog number3758175
Manufacturer gradeKCK20
Material gradeK10; K25
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle5
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
