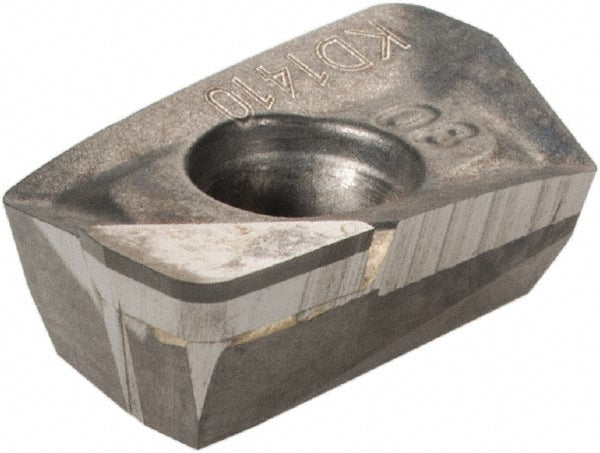

EDCT10T308PDFR-PCD Diamond Tipped Insert, Grade KD1410 - Kennametal 3759084
MFR# 3759084ISO/ANSI# EDCT10T308PDFR-PCDCat# EDCT10T308PDFR-PCDSeries EDCT
$143.67List $172.32
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKD1410
MaterialDiamond Tipped
Description
The Kennametal 3759084 is a EDCT10T308PDFR-PCD diamond tipped indexable insert, grade KD1410. Suited for non-ferrous metal.
Specifications
Ansi codeEC1008FR-PCD
Chip breakerFlat Top
Coating processUncoated
Corner radius in1/32
Cutter series compatibilityMill 1-10
Cutting edge styleSharp
Included angle degree70
Inscribed circle0.2650
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialDiamond Tipped
Insert shapeParallelogram
Insert size10
Insert size code10T308
Insert styleEDCT
Iso codeEDCT10T308PDFR-PCD
Length0.4733
Length range0.4500 to 0.5000
Manufacturers catalog numberEDCT10T308PDFR-PCD
Manufacturer gradeKD1410
Material applicationNon-Ferrous Metal
Material gradePCD
Multi use toolYes
Number of cutting edges1
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1476
Thickness range0.1250 to 0.1500
Width0.2650
