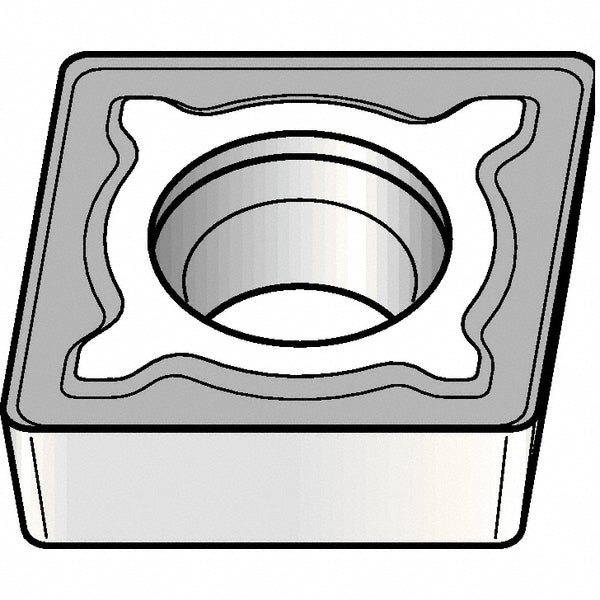

C - Diamond (Rhombic) 80-Deg 3/8" IC Carbide Insert, Grade KCM35, TiN - Kennametal 3760261

Kennametal

C - Diamond (Rhombic) 80-Deg 3/8" IC Carbide Insert, Grade KCM35, TiN - Kennametal 3760261

MFR# 3760261ISO/ANSI# CCMT09T308Series Screw-On

$29.73List $36.29 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCM35
MaterialCarbide
CoatingTiN

Description

The Kennametal 3760261 is a carbide indexable insert, grade KCM35, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeCCMT3252
Ansi size code3252
Chip breakerMF
Chip breaker operationFinishing; Medium Machining
Clearance codeC
Coating finishTiN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1732
Included angle80
Industry standard numberCCMT3252MF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3808
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code3252
Insert styleCCMT
Insert thickness in5/32
Iso insert codeCCMT09T308
Iso size code09T308
Length range0.3000 - 0.4000
Manufacturers catalog number3760261
Manufacturer gradeKCM35
Material gradeC1; C2
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
