Kennametal

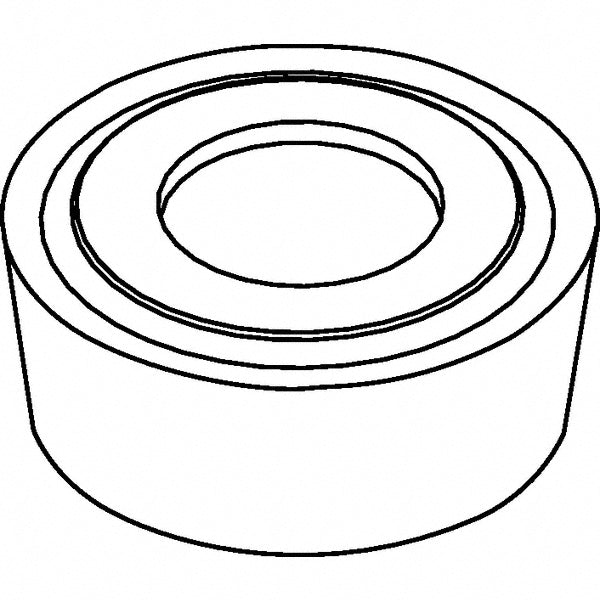

R - Round 0.3937" IC Carbide Insert, Grade KCM25, TiN - Kennametal 3760281
MFR# 3760281ISO/ANSI# RCMT10T3M0Series Screw-On
$25.05List $30.58
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeR - Round
GradeKCM25
MaterialCarbide
CoatingTiN
Description
The Kennametal 3760281 is a carbide indexable insert, grade KCM25, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeRCMT10T3M0
Ansi size code10T3M0
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeC
Coating finishTiN
Coating processMTCVD
Corner radius0.1969
Cutting edge styleHoned
Full radiusYes
Grade characteristicsSteel (P) - High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle360
Industry standard numberRCMT10T3M0
Inscribed circle0.3937
Insert handNeutral
Insert holding methodScrew
Insert length0.3937
Insert materialCarbide
Insert shapeR - Round
Insert size code10T3M0
Insert styleRCMT
Insert thickness in5/32
Iso insert codeRCMT10T3M0
Iso size code10T3M0
Length range0.3000 - 0.4000
Manufacturers catalog number3760281
Manufacturer gradeKCM25
Material gradeC1; C2
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.3937
Wiper edgeNo
