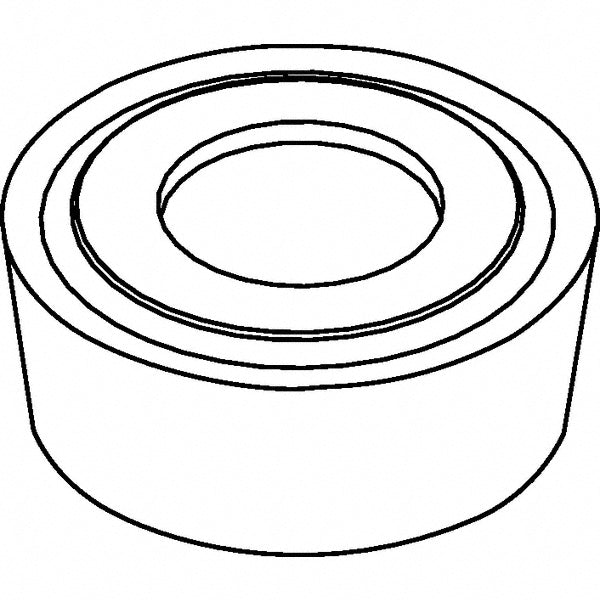

R - Round 1/2" IC Carbide Insert, Grade KCM25, TiN - Kennametal 3760286

Kennametal

R - Round 1/2" IC Carbide Insert, Grade KCM25, TiN - Kennametal 3760286

MFR# 3760286ISO/ANSI# RCMT120400Series Screw-On

$30.52List $37.25 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeR - Round
GradeKCM25
MaterialCarbide
CoatingTiN

Description

The Kennametal 3760286 is a carbide indexable insert, grade KCM25, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeRCMT43
Ansi size code43
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeC
Coating finishTiN
Coating processMTCVD
Corner radius in1/4
Cutting edge styleHoned
Full radiusYes
Grade characteristicsSteel (P) - High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness
Hole diameter0.2165
Included angle360
Industry standard numberRCMT43
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length in1/2
Insert materialCarbide
Insert shapeR - Round
Insert size code43
Insert styleRCMT
Insert thickness in3/16
Iso insert codeRCMT120400
Iso size code120400
Length range0.5000 - 0.6000
Manufacturers catalog number3760286
Manufacturer gradeKCM25
Material gradeC1; C2
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
