Kennametal

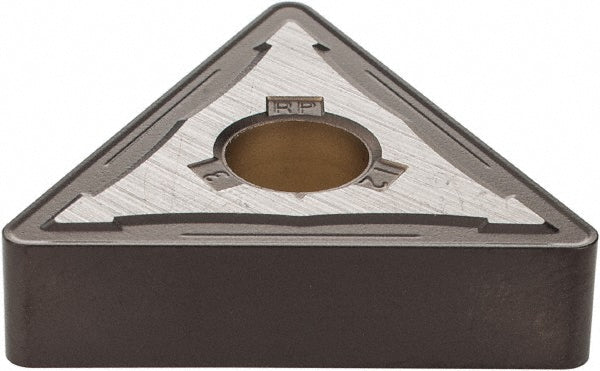

T - Triangle 5/8" IC Carbide Insert, Grade KCM35, TiN - Kennametal 3760451
MFR# 3760451ISO/ANSI# TNMG270612Series KENLOC
$40.98List $49.16
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeT - Triangle
GradeKCM35
MaterialCarbide
CoatingTiN
Description
The Kennametal 3760451 is a carbide indexable insert, grade KCM35, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeTNMG543
Ansi size code543
Chip breakerRP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiN
Coating processMTCVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2500
Included angle60
Industry standard numberTNMG543RP
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.0820
Insert materialCarbide
Insert shapeT - Triangle
Insert size code543
Insert styleTNMG
Insert thickness in1/4
Iso insert codeTNMG270612
Iso size code270612
Length range0.7000 - 10.0000
Manufacturers catalog number3760451
Manufacturer gradeKCM35
Material gradeC1; C2
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle5
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width1.0820
Wiper edgeNo
